安全断言标记语言（英语：SecurityAssertionMarkupLanguage，简称SAML，发音sam-el）是一个基于XML的开源标准数据格式，它在当事方之间交换身份验证和授权数据，尤其是在身份提供者和服务提供者之间交换。可以实现基于网络跨域的单点登录（SSO），以便于减少向一个用户分发多个身份验证令牌的管理开销。

SAML主体

在SAML协议中，涉及两个主体：

ServiceProvider服务提供方，简称SP。什么是服务提供方？例如：阿里云控制台、腾讯云控制台、AWS控制台这些都是服务提供方。

IdentityProvider身份提供方，简称IdP。什么是身份提供方？Authing可以作为身份提供方，身份提供方能够向SP发送身份断言，所谓身份断言就是由Authing签发的，可以标识某个人身份的Token，只不过，在SAML协议中，这个Token的格式是XML形式的。还有一些其他的身份提供方，例如Okta、SSOCircle、Auth0，他们都可以向SP返回身份断言。

两个主体通过用户的浏览器进行信息交换。方式上，SP可以返回带参数的重定向HTTP响应，让用户立刻通过参数将信息发给IdP。而IdP会返回一个表单，同时还有一段立即提交表单的JS代码，从而让用户立刻将信息发给SP。

总结一下，SP提供服务，需要知道用户的身份，就需要向IdP询问。IdP知道用户的身份，当用户在IdP登录成功，IdP就将用户的身份以SAML断言的形式发给SP。SP信任IdP发来的身份断言，从而赋予该用户在SP的相关权限。

SAMLRequest

当用户的身份无法鉴定时，SP会向IdP发送SAMLRequest信息（通过浏览器发送），请求IdP来鉴定用户身份。

由阿里云控制台发起一次SAMLRequest的形式是这样的：

GET

(提示：代码可向右滑动)

SAMLRequest参数通过query在URL中发送给IdP，SAMLRequest的内容如下：

fZJLT+MwFIX3/IrI+7yct9Wk6kyFQGJERQKL2RnnJnWV2Blfp2L+PaGlDLOApaV7vnN0jlfrl3FwjmBQalWS0AuIA0roVqq+JI/NtZuTdXW1Qj4OdGKb2e7VA/yZAa2zQQRjF91PrXAewdRgjlLA48NdSfbWTsh8H2WvpPL4IP/OyhN69N9Qfl3fE2e7UKTi9mR9EQhtwOOLz5LAE8o/Up9P8qRyZTv5CYRBQTOIQXRtnMbdcwwt71LiXGsj4JSwJB0fEIhzuy0Jp9AXgvaHgwzzPA/jfXagbRYlebeP+mI5wh1HlEf4J0Oc4Vah5cqWhAY0cIPCpXkTRiwoWJJ5eZH+Js7OaKuFHn5IdS5sNoppjhKZ4iMgs4LVm193jHoBez4fIbtpmp27u68b4jxdiqdvxS9TKGTnqr9nTe/GpDovw06JzWfC9wB+2Y5UXy8VRlmcpkWUpUlGY5p8TLfyP7tW78//v0f1Cg==

(提示：代码可向右滑动)

base64decode+inflate解码后（）

?xmlversion="1.0"encoding="UTF-8"?saml2p:AuthnRequestAssertionConsumerServiceURL=""Destination=""ForceAuthn="false"ID="a2eg9c2gjji188814h7j2d7358fh3g9"IsPassive="false"IssueInstant="2020-09-28T13:09:57.896Z"ProtocolBinding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST"Version="2.0"xmlns:saml2p="urn:oasis:names:tc:SAML:2.0:protocol"saml2:Issuerxmlns:saml2="urn:oasis:names:tc:SAML:2.0:assertion";/saml2:Issuer/saml2p:AuthnRequest

(提示：代码可向右滑动)

SAMLResponse

IdP收到SAMLRequest后，会弹出登录框对用户身份进行认证：

当用户在IdP完成登录后，SAMLIdP将用户身份断言发送给SP（放在表单中，通过浏览器POST请求发送）。SAMLIdP的响应内容如下：

formid="saml-form"method="post"action=""autocomplete="off"inputtype="hidden"name="SAMLResponse"id="saml-response"value="PHNhbWxwOlJlc3BvbnNlIHhtbG5zOnNhbWxwPSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6cHJvdG9jb2wiIHhtbG5zOnNhbWw9InVybjpvYXNpczpuYW1lczp0YzpTQU1MOjIuMDphc3NlcnRpb24iIElEPSJfNjJiMTc3YzEtYTkxOS00MmY2LTk1ODYtNDdmMTNiNzEwODFmIiBWZXJzaW9uPSIyLjAiIElzc3VlSW5zdGFudD0iMjAyMC0wOS0yOFQxMzozMDozMS43ODhaIiBEZXN0aW5hdGlvbj0iaHR0cHM6Ly9zaWduaW4uYWxpeXVuLmNvbS9zYW1sL1NTTyIgSW5SZXNwb25zZVRvPSJhNDlmOGVkaTMxY2owYTJhNDU5ZzAzMzFjM2Q5YzEwIj4KICA8c2FtbDpJc3N1ZXI+aHR0cHM6Ly8yMG5xdWx2b3FwYnAuYXV0aGluZy5jbjwvc2FtbDpJc3N1ZXI+CiAgPHNhbWxwOlN0YXR1cz4KICAgIDxzYW1scDpTdGF0dXNDb2RlIFZhbHVlPSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6c3RhdHVzOlN1Y2Nlc3MiLz4KICA8L3NhbWxwOlN0YXR1cz4KICA8c2FtbDpBc3NlcnRpb24geG1sbnM6eHNpPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxL1hNTFNjaGVtYS1pbnN0YW5jZSIgeG1sbnM6eHM9Imh0dHA6Ly93d3cudzMub3JnLzIwMDEvWE1MU2NoZW1hIiB4bWxuczpzYW1sPSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6YXNzZXJ0aW9uIiBJRD0iX2ZhZTk1YjQ3LWNiZjMtNGEyMC1hZGQwLTk5ZDg1NmI0MTI0ZSIgVmVyc2lvbj0iMi4wIiBJc3N1ZUluc3RhbnQ9IjIwMjAtMDktMjhUMTM6MzA6MzEuNzg4WiI+CiAgICA8c2FtbDpJc3N1ZXI+aHR0cHM6Ly8yMG5xdWx2b3FwYnAuYXV0aGluZy5jbjwvc2FtbDpJc3N1ZXI+PGRzOlNpZ25hdHVyZSB4bWxuczpkcz0iaHR0cDovL3d3dy53My5vcmcvMjAwMC8wOS94bWxkc2lnIyI+PGRzOlNpZ25lZEluZm8+PGRzOkNhbm9uaWNhbGl6YXRpb25NZXRob2QgQWxnb3JpdGhtPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxLzEwL3htbC1leGMtYzE0biMiLz48ZHM6U2lnbmF0dXJlTWV0aG9kIEFsZ29yaXRobT0iaHR0cDovL3d3dy53My5vcmcvMjAwMC8wOS94bWxkc2lnI3JzYS1zaGExIi8+PGRzOlJlZmVyZW5jZSBVUkk9IiNfZmFlOTViNDctY2JmMy00YTIwLWFkZDAtOTlkODU2YjQxMjRlIj48ZHM6VHJhbnNmb3Jtcz48ZHM6VHJhbnNmb3JtIEFsZ29yaXRobT0iaHR0cDovL3d3dy53My5vcmcvMjAwMC8wOS94bWxkc2lnI2VudmVsb3BlZC1zaWduYXR1cmUiLz48ZHM6VHJhbnNmb3JtIEFsZ29yaXRobT0iaHR0cDovL3d3dy53My5vcmcvMjAwMS8xMC94bWwtZXhjLWMxNG4jIi8+PC9kczpUcmFuc2Zvcm1zPjxkczpEaWdlc3RNZXRob2QgQWxnb3JpdGhtPSJodHRwOi8vd3d3LnczLm9yZy8yMDAwLzA5L3htbGRzaWcjc2hhMSIvPjxkczpEaWdlc3RWYWx1ZT4vb2w2bEMxaitzbWRvbmw0OCtsSlR6VWVxbnc9PC9kczpEaWdlc3RWYWx1ZT48L2RzOlJlZmVyZW5jZT48L2RzOlNpZ25lZEluZm8+PGRzOlNpZ25hdHVyZVZhbHVlPmF3emNFMGRwOEJ6VFc0YjRQRmFSWDdOS09DOTViTHFPblBlQUtJL0NzRGZHYUpkbXpDSzBmVmxpeitlNlh6Qmx1S2ZCcFF0clFvbktsN2sydlZOYVBGeDlQcFNWLOTFITEd2WVEwcUIzNnVBNEhGdm0vM00zMURMM1pSRlBScTY4WmFWQUc2bE1WZDBZYmlJblZ2OUZXd3NpKzZqRXBGK1BSbG1rb3FBST08L2RzOlNpZ25hdHVyZVZhbHVlPjxkczpLZXlJbmZvPjxkczpYNTA5RGF0YT48ZHM6WDUwOUNlcnRpZmljYXRlPk1JSUNRakNDQWF1Z0F3SUJBZ0lCQURBTkJna3Foa2lHOXcwQkFRMEZBREErTVFzd0NRWURWUVFHRXdKMWN6RVNNQkFHQTFVRUNBd0o1THFMNWE2ZTVMaUtNUXd3Q2dZRFZRUUtEQU56YzNNeERUQUxCZ05WQkFNTUJITnpjM013SGhjTk1qQXdNVEF6TVRNeE9ERTBXaGNOTWpFd01UQXlNVE14T0RFMFdqQStNUXN3Q1FZRFZRUUdFd0oxY3pFU01CQUdBMVVFQ0F3SjVMcUw1YTZlNUxpS01Rd3dDZ1lEVlFRS0RBTnpjM014RFRBTEJnTlZCQU1NQkhOemMzTXdnWjh3RFFZSktvWklodmNOQVFFQkJRQURnWTBBTUlHSkFvR0JBTU5XbE1rNEwrVGNXd3lkOXBsVFBMaEhML1VNQ1BHSmd2NVZwOHZhQXA0V01zR3R3T0xJMVVOV2NjSXFNZVUwS2FzSnFyS3hIWXZxOUp6Wmg0ZmZ0Rm1vd0J6MzZ2ejBlSVVzUDVQS3ZGVUxrQzF2anJkbitRSlhiSjUxYWxaWktmUGdsMUhJOHc2bGgxMmFXVGphS1ErS2VtSXR0cUxxSmdMV09ZQVhQSXN6QWdNQkFBR2pVREJPTUIwR0ExVWREZ1FXQkJUVDEwNGhWWVZuUHBnN2FGckRpWFBTaGJ0eFVUQWZCZ05WSFNNRUdEQVdnQlRUMTA0aFZZVm5QcGc3YUZyRGlYUFNoYnR4VVRBTUJnTlZIUk1FQlRBREFRSC9NQTBHQ1NxR1NJYjNEUUVCRFFVQUE0R0JBQjYrMXhLN0dNSmE1TTZVamcvd2Q0RXR3eThOZFRGNnlwU3FOMzZCZDVPZFBtd1U5SHpEdUdqS2kzWndvb1BJR1JCOHBpTHNLazExTTRJaEFGNEMyUi9Kc3ZWWXdXT1lnb2pXNEgxaFI1d2syam43cGx0V3FSUGRmWkJsMFlmc0R5c1VQN2s4L01jaE9XWDdXaWZOeHBlM0dkU0tOMTdDa2RSakw5MjRiVjBsPC9kczpYNTA5Q2VydGlmaWNhdGU+PC9kczpYNTA5RGF0YT48L2RzOktleUluZm8+PC9kczpTaWduYXR1cmU+CiAgICA8c2FtbDpTdWJqZWN0PgogICAgICA8c2FtbDpOYW1lSUQgRm9ybWF0PSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoxLjE6bmFtZWlkLWZvcm1hdDp1bnNwZWNpZmllZCI+eWV6dXdlaUBhdXRoaW5nLm9uYWxpeXVuLmNvbTwvc2FtbDpOYW1lSUQ+CiAgICAgIDxzYW1sOlN1YmplY3RDb25maXJtYXRpb24gTWV0aG9kPSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6Y206YmVhcmVyIj4KICAgICAgICA8c2FtbDpTdWJqZWN0Q29uZmlybWF0aW9uRGF0YSBOb3RPbk9yQWZ0ZXI9IjIwMjAtMDktMjhUMTQ6MzA6MzEuNzg4WiIgUmVjaXBpZW50PSJodHRwczovL3NpZ25pbi5hbGl5dW4uY29tL3NhbWwvU1NPIiBJblJlc3BvbnNlVG89ImE0OWY4ZWRpMzFjajBhMmE0NTlnMDMzMWMzZDljMTAiLz4KICAgICAgPC9zYW1sOlN1YmplY3RDb25maXJtYXRpb24+CiAgICA8L3NhbWw6U3ViamVjdD4KICAgIDxzYW1sOkNvbmRpdGlvbnMgTm90QmVmb3JlPSIyMDIwLTA5LTI4VDEzOjMwOjMxLjc4OFoiIE5vdE9uT3JBZnRlcj0iMjAyMC0wOS0yOFQxNDozMDozMS43ODhaIj4KICAgICAgPHNhbWw6QXVkaWVuY2VSZXN0cmljdGlvbj4KICAgICAgICA8c2FtbDpBdWRpZW5jZT5odHRwczovL3NpZ25pbi5hbGl5dW4uY29tLzEzNzQ2NjkzNzY1NzI0MjUvc2FtbC9TU088L3NhbWw6QXVkaWVuY2U+CiAgICAgIDwvc2FtbDpBdWRpZW5jZVJlc3RyaWN0aW9uPgogICAgPC9zYW1sOkNvbmRpdGlvbnM+PHNhbWw6QXV0aG5TdGF0ZW1lbnQgQXV0aG5JbnN0YW50PSIyMDIwLTA5LTI4VDEzOjMwOjMxLjg4OFoiIFNlc3Npb25JbmRleD0ib29ldW1jcTZlSGpkZHIxSDNGeXpvdTdDcy1PR1RzTmwiPjxzYW1sOkF1dGhuQ29udGV4dD48c2FtbDpBdXRobkNvbnRleHRDbGFzc1JlZj51cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6YWM6Y2xhc3Nlczp1bnNwZWNpZmllZDwvc2FtbDpBdXRobkNvbnRleHRDbGFzc1JlZj48L3NhbWw6QXV0aG5Db250ZXh0Pjwvc2FtbDpBdXRoblN0YXRlbWVudD48c2FtbDpBdHRyaWJ1dGVTdGF0ZW1lbnQ+PHNhbWw6QXR0cmlidXRlIE5hbWU9ImVtYWlsIiBOYW1lRm9ybWF0PSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6YXR0cm5hbWUtZm9ybWF0OmJhc2ljIj48c2FtbDpBdHRyaWJ1dGVWYWx1ZSB4bWxuczp4cz0iaHR0cDovL3d3dy53My5vcmcvMjAwMS9YTUxTY2hlbWEiIHhtbG5zOnhzaT0iaHR0cDovL3d3dy53My5vcmcvMjAwMS9YTUxTY2hlbWEtaW5zdGFuY2UiIHhzaTp0eXBlPSJ4czpzdHJpbmciPnllenV3ZWlAYXV0aGluZy5jbjwvc2FtbDpBdHRyaWJ1dGVWYWx1ZT48L3NhbWw6QXR0cmlidXRlPjxzYW1sOkF0dHJpYnV0ZSBOYW1lPSJuYW1lIiBOYW1lRm9ybWF0PSJ1cm46b2FzaXM6bmFtZXM6dGM6U0FNTDoyLjA6YXR0cm5hbWUtZm9ybWF0OmJhc2ljIj48c2FtbDpBdHRyaWJ1dGVWYWx1ZSB4bWxuczp4cz0iaHR0cDovL3d3dy53My5vcmcvMjAwMS9YTUxTY2hlbWEiIHhtbG5zOnhzaT0iaHR0cDovL3d3dy53My5vcmcvMjAwMS9YTUxTY2hlbWEtaW5zdGFuY2UiIHhzaTp0eXBlPSJ4czpzdHJpbmciLz48L3NhbWw6QXR0cmlidXRlPjxzYW1sOkF0dHJpYnV0ZSBOYW1lPSJ1c2VybmFtZSIgTmFtZUZvcm1hdD0idXJuOm9hc2lzOm5hbWVzOnRjOlNBTUw6Mi4wOmF0dHJuYW1lLWZvcm1hdDpiYXNpYyI+PHNhbWw6QXR0cmlidXRlVmFsdWUgeG1sbnM6eHM9Imh0dHA6Ly93d3cudzMub3JnLzIwMDEvWE1MU2NoZW1hIiB4bWxuczp4c2k9Imh0dHA6Ly93d3cudzMub3JnLzIwMDEvWE1MU2NoZW1hLWluc3RhbmNlIiB4c2k6dHlwZT0ieHM6c3RyaW5nIj55ZXp1d2VpQGF1dGhpbmcuY248L3NhbWw6QXR0cmlidXRlVmFsdWU+PC9zYW1sOkF0dHJpYnV0ZT48c2FtbDpBdHRyaWJ1dGUgTmFtZT0icGhvbmUiIE5hbWVGb3JtYXQ9InVybjpvYXNpczpuYW1lczp0YzpTQU1MOjIuMDphdHRybmFtZS1mb3JtYXQ6YmFzaWMiPjxzYW1sOkF0dHJpYnV0ZVZhbHVlIHhtbG5zOnhzPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxL1hNTFNjaGVtYSIgeG1sbnM6eHNpPSJodHRwOi8vd3d3LnczLm9yZy8yMDAxL1hNTFNjaGVtYS1pbnN0YW5jZSIgeHNpOnR5cGU9InhzOnN0cmluZyI+bnVsbDwvc2FtbDpBdHRyaWJ1dGVWYWx1ZT48L3NhbWw6QXR0cmlidXRlPjwvc2FtbDpBdHRyaWJ1dGVTdGF0ZW1lbnQ+PC9zYW1sOkFzc2VydGlvbj4KPC9zYW1scDpSZXNwb25zZT4="/inputtype="hidden"name="RelayState"id="relay-state"value=""//formscripttype="text/javascript"(function(){[0].submit();})();/script

(提示：代码可向右滑动)

没有什么神秘的，就是一个HTMLform表单和一段立即提交该表单的JS代码。其中的SAMLResponse信息如下：

base64decode+inflate解码后

()

samlp:Responsexmlns:samlp="urn:oasis:names:tc:SAML:2.0:protocol"xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"ID="_62b177c1-a919-42f6-9586-47f13b71081f"Version="2.0"IssueInstant="2020-09-28T13:30:31.788Z"Destination=""InResponseTo="a49f8edi31cj0a2a459g0331c3d9c10"saml:Issuer;/saml:Issuersamlp:Statussamlp:StatusCodeValue="urn:oasis:names:tc:SAML:2.0:status:Success"//samlp:Statussaml:Assertionxmlns:xsi=""xmlns:xs=""xmlns:saml="urn:oasis:names:tc:SAML:2.0:assertion"ID="_fae95b47-cbf3-4a20-add0-99d856b4124e"Version="2.0"IssueInstant="2020-09-28T13:30:31.788Z"saml:Issuer;/saml:Issuerds:Signaturexmlns:ds=""ds:SignedInfods:CanonicalizationMethodAlgorithm=""/ds:SignatureMethodAlgorithm=""/ds:ReferenceURI="#_fae95b47-cbf3-4a20-add0-99d856b4124e"ds:Transformsds:TransformAlgorithm=""/ds:TransformAlgorithm=""//ds:Transformsds:DigestMethodAlgorithm=""/ds:DigestValue/ol6lC1j+smdonl48+lJTzUeqnw=/ds:DigestValue/ds:Reference/ds:SignedInfods:SignatureValueawzcE0dp8BzTW4b4PFaRX7NKOC95bLqOnPeAKI/CsDfGaJdmzCK0fVliz+e6XzBluKfBpQtrQonKl7k2vVNaPFx9PpSVzwK91HLGvYQ0qB36uA4HFvm/3M31DL3ZRFPRq68ZaVAG6lMVd0YbiInVv9FWwsi+6jEpF+PRlmkoqAI=/ds:SignatureValueds:KeyInfods:X509Datads:X509CertificateMIICQjCCAaugAwIBAgIBADANBgkqhkiG9w0BAQ0FADA+MQswCQYDVQQGEwJ1czESMBAGA1UECAwJ5LqL5a6e5LiKMQwwCgYDVQQKDANzc3MxDTALBgNVBAMMBHNzc3MwHhcNMjAwMTAzMTMxODE0WhcNMjEwMTAyMTMxODE0WjA+MQswCQYDVQQGEwJ1czESMBAGA1UECAwJ5LqL5a6e5LiKMQwwCgYDVQQKDANzc3MxDTALBgNVBAMMBHNzc3MwgZ8wDQYJKoZIhvcNAQEBBQADgY0AMIGJAoGBAMNWlMk4L+TcWwyd9plTPLhHL/UMCPGJgv5Vp8vaAp4WMsGtwOLI1UNWccIqMeU0KasJqrKxHYvq9JzZh4fftFmowBz36vz0eIUsP5PKvFULkC1vjrdn+QJXbJ51alZZKfPgl1HI8w6lh12aWTjaKQ+KemIttqLqJgLWOYAXPIszAgMBAAGjUDBOMB0GA1UdDgQWBBTT104hVYVnPpg7aFrDiXPShbtxUTAfBgNVHSMEGDAWgBTT104hVYVnPpg7aFrDiXPShbtxUTAMBgNVHRMEBTADAQH/MA0GCSqGSIb3DQEBDQUAA4GBAB6+1xK7GMJa5M6Ujg/wd4Etwy8NdTF6ypSqN36Bd5OdPmwU9HzDuGjKi3ZwooPIGRB8piLsKk11M4IhAF4C2R/JsvVYwWOYgojW4H1hR5wk2jn7pltWqRPdfZBl0YfsDysUP7k8/MchOWX7WifNxpe3GdSKN17CkdRjL924bV0l/ds:X509Certificate/ds:X509Data/ds:KeyInfo/ds:Signaturesaml:Subjectsaml:NameIDFormat="urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified"yezuwei@/saml:NameIDsaml:SubjectConfirmationMethod="urn:oasis:names:tc:SAML:2.0:cm:bearer"saml:SubjectConfirmationDataNotOnOrAfter="2020-09-28T14:30:31.788Z"Recipient=""InResponseTo="a49f8edi31cj0a2a459g0331c3d9c10"//saml:SubjectConfirmation/saml:Subjectsaml:ConditionsNotBefore="2020-09-28T13:30:31.788Z"NotOnOrAfter="2020-09-28T14:30:31.788Z"saml:AudienceRestrictionsaml:Audience;/saml:Audience/saml:AudienceRestriction/saml:Conditionssaml:AuthnStatementAuthnInstant="2020-09-28T13:30:31.888Z"SessionIndex="ooeumcq6eHjddr1H3Fyzou7Cs-OGTsNl"saml:AuthnContextsaml:AuthnContextClassRefurn:oasis:names:tc:SAML:2.0:ac:classes:unspecified/saml:AuthnContextClassRef/saml:AuthnContext/saml:AuthnStatementsaml:AttributeStatementsaml:AttributeName="email"NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"saml:AttributeValuexmlns:xs=""xmlns:xsi=""xsi:type="xs:string"yezuwei@/saml:AttributeValue/saml:Attributesaml:AttributeName="name"NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"saml:AttributeValuexmlns:xs=""xmlns:xsi=""xsi:type="xs:string"//saml:Attributesaml:AttributeName="username"NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"saml:AttributeValuexmlns:xs=""xmlns:xsi=""xsi:type="xs:string"yezuwei@/saml:AttributeValue/saml:Attributesaml:AttributeName="phone"NameFormat="urn:oasis:names:tc:SAML:2.0:attrname-format:basic"saml:AttributeValuexmlns:xs=""xmlns:xsi=""xsi:type="xs:string"null/saml:AttributeValue/saml:Attribute/saml:AttributeStatement/saml:Assertion/samlp:Response

(提示：代码可向右滑动)

这段内容就是用户的身份断言，也就是用户的Token，只不过这个Token通过XML格式传递。

本文为读者讲述SAML中，SP、IdP、浏览器三个实体之间数据交互的流程。

SAML协议中涉及到的主体

使用SAML协议进行身份认证时，涉及到以下三个主体

浏览器：SP和IdP借助浏览器互相通信

SP：资源提供方

IdP：身份认证提供方

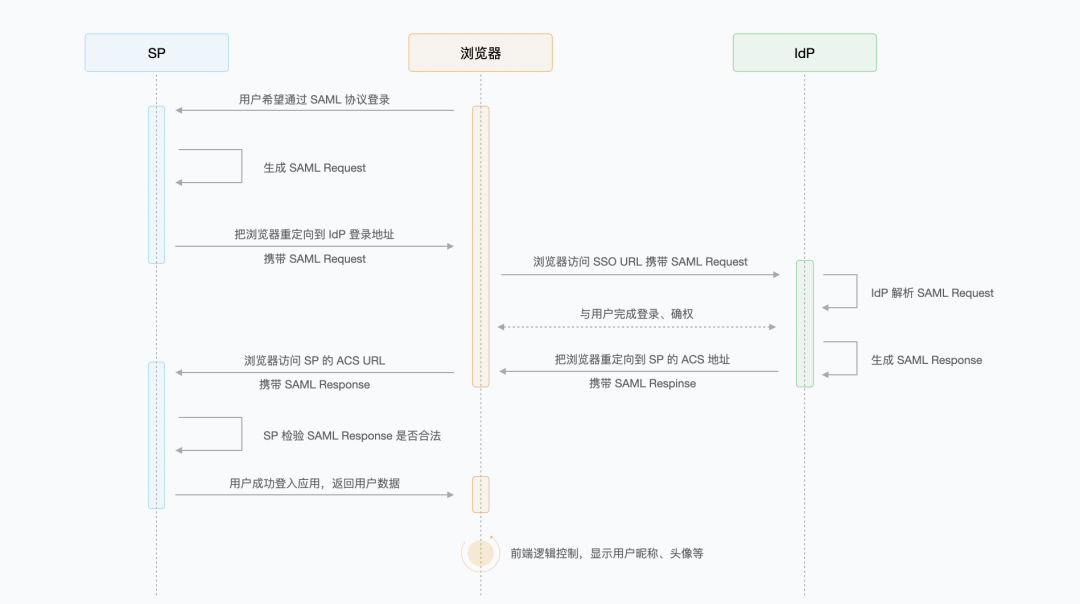

发起SAML登录到登录成功的整个过程

用户试图登录SP提供的应用。

SP生成SAMLRequest，通过浏览器重定向，向IdP发送SAMLRequest。

IdP解析SAMLRequest并将用户重定向到认证页面。

用户在认证页面完成登录。

IdP生成SAMLResponse，通过对浏览器重定向，向SP的ACS地址返回SAMLResponse，其中包含SAMLAssertion用于确定用户身份。

SP对SAMLResponse的内容进行检验。

用户成功登录到SP提供的应用。

SP与IdP之间通信方式

SP与IdP之间的通信方式分为HTTPRedirectBinding、HTTPPOSTBinding、HTTPArtifactBinding。每种方式在不同的阶段会用不同类型的HTTP与对方通信。

HTTPRedirectBinding

SP通过重定向GET请求把SAMLRequest发送到IdP，IdP通过立即提交的Form表单以POST请求的方式将SAMLResponse发到SP。

HTTPPOSTBinding

IdP通过立即提交的Form表单以POST请求的方式将SAMLRequest发到SP。IdP通过立即提交的Form表单以POST请求的方式将SAMLResponse发到SP。

HTTPArtifactBinding

SP、IdP双方只通过浏览器交换SAMLRequest、SAMLResponse的索引编号，收到编号后，在后端请求对方的ArtifactResolutionService接口来获取真正的请求实体内容。从而避免SAMLRequest、SAMLResponse暴露在前端。
